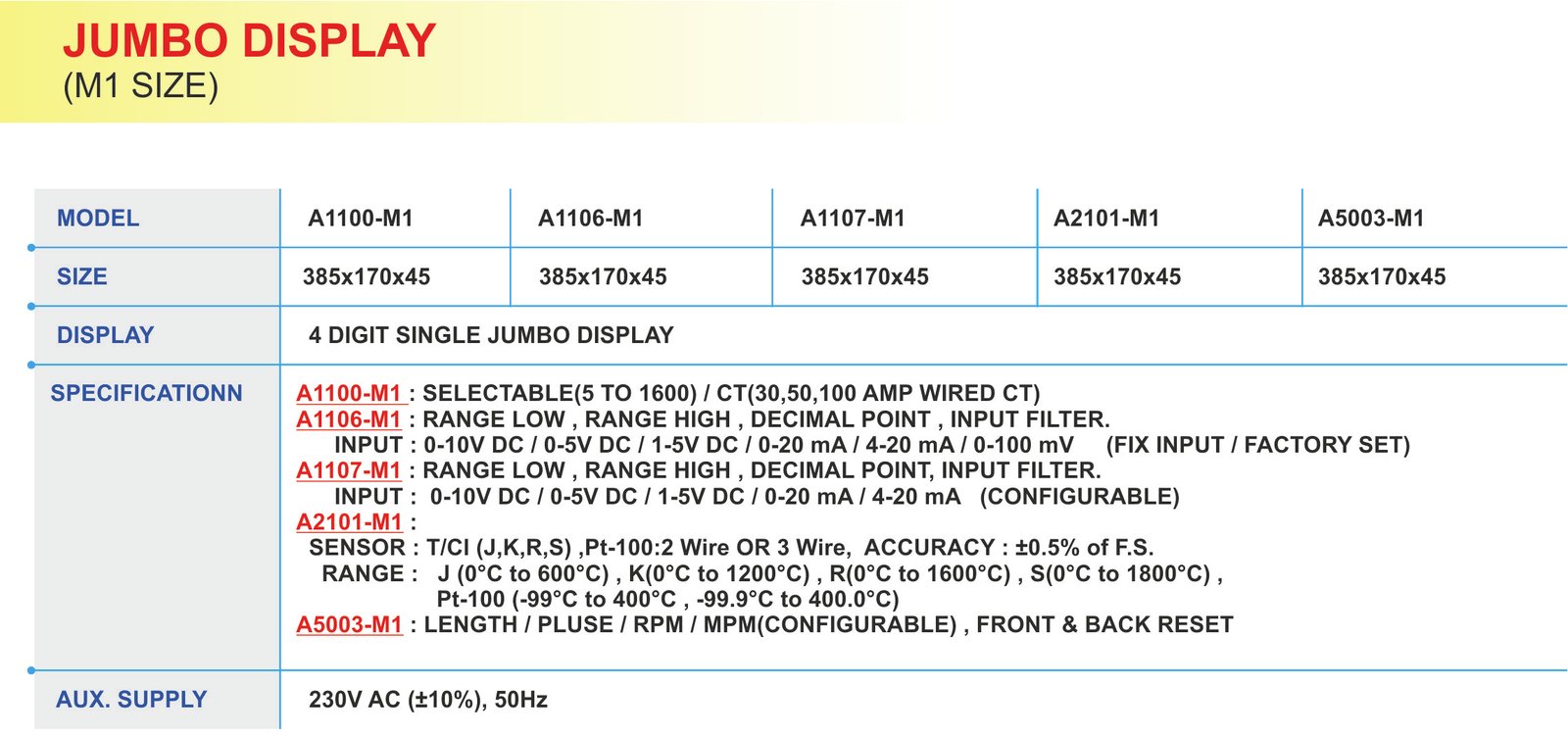

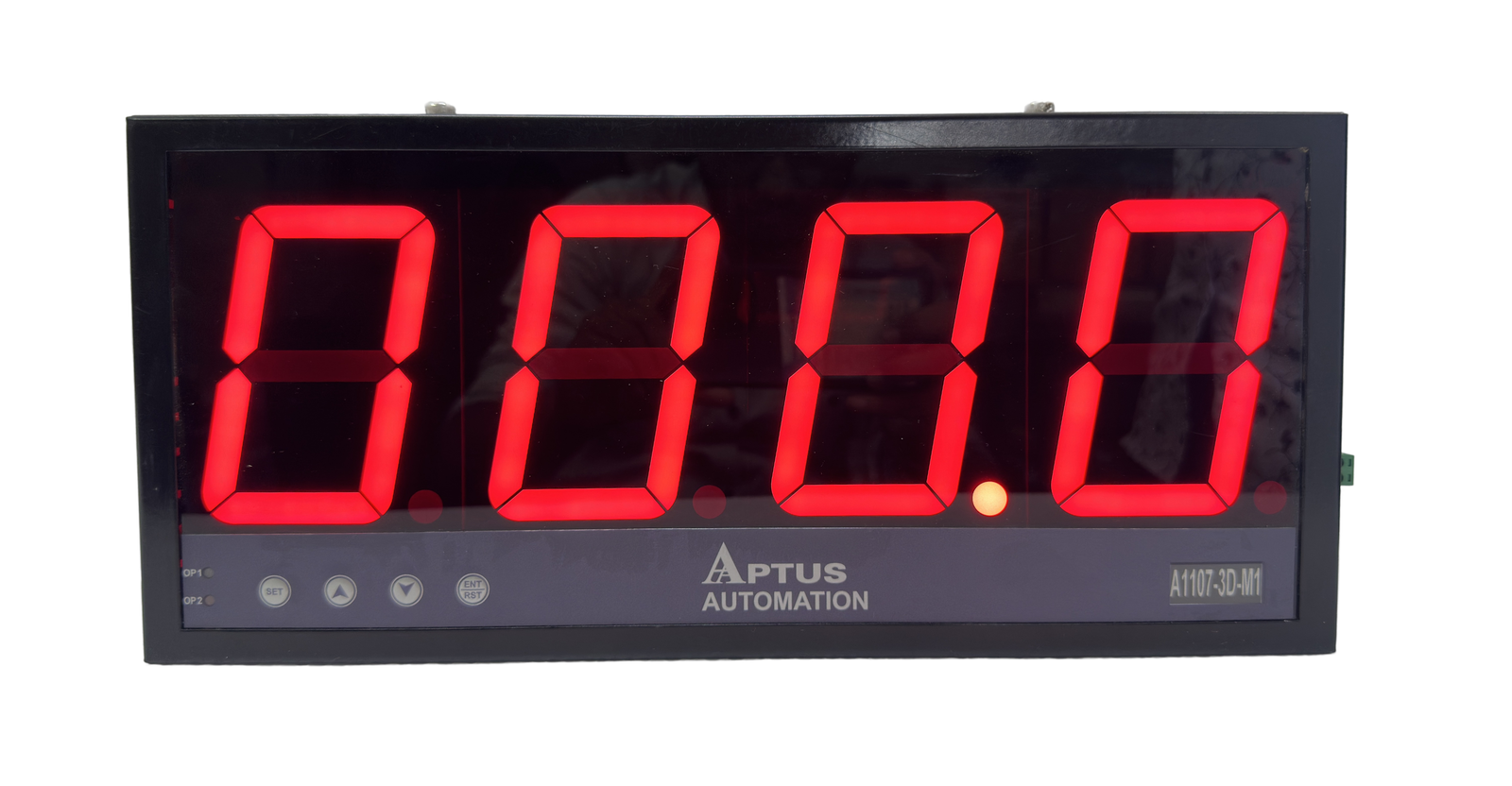

• DISPLAY: 4 DIGIT SINGLE SIDE JUMBO DISPLAY
• SENSOR: MICRO SWITCH, LIMIT SWITCH, NPN/PNP PROXIMITY SWITCH (FACTORY SET)
• SPECIFICATION: A1100-M1 : SELECTABLE(5 TO 1600) / CT(30,50,100 AMP WIRED CT)

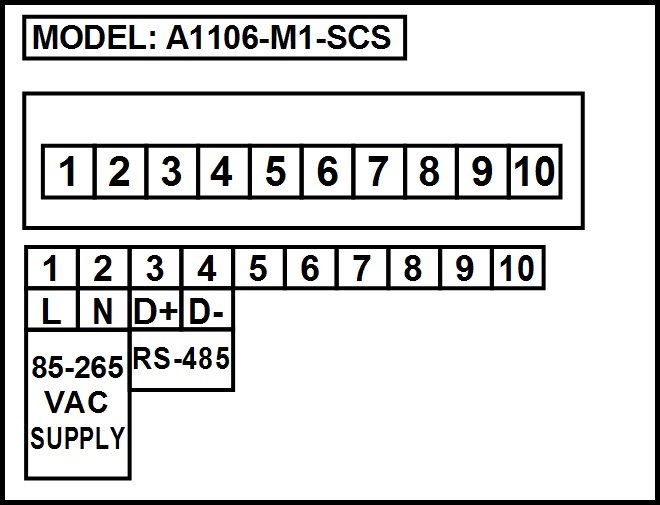

  A1106-M1 : RANGE LOW , RANGE HIGH , DECIMAL POINT , INPUT FILTER.
  INPUT : 0-10V DC / 0-5V DC / 1-5V DC / 0-20 mA / 4-20 mA / 0-100 mV(FIX INPUT / FACTORY SET)
  A1107-M1 : RANGE LOW , RANGE HIGH , DECIMAL POINT, INPUT FILTER.
  INPUT : 0-10V DC / 0-5V DC / 1-5V DC / 0-20 mA / 4-20 mA (CONFIGURABLE)
  A2101-M1 :
  SENSOR : T/Cl (J,K,R,S) ,Pt-100:2 Wire OR 3 Wire, ACCURACY : ±0.5% of F.S.
  RANGE : J (0°C to 600°C) , K(0°C to 1200°C) , R(0°C to 1600°C) , S(0°C to 1800°C) ,
  Pt-100 (-99°C to 400°C , -99.9°C to 400.0°C)
  A5003-M1 : LENGTH / PLUSE / RPM / MPM(CONFIGURABLE) , FRONT & BACK RESET

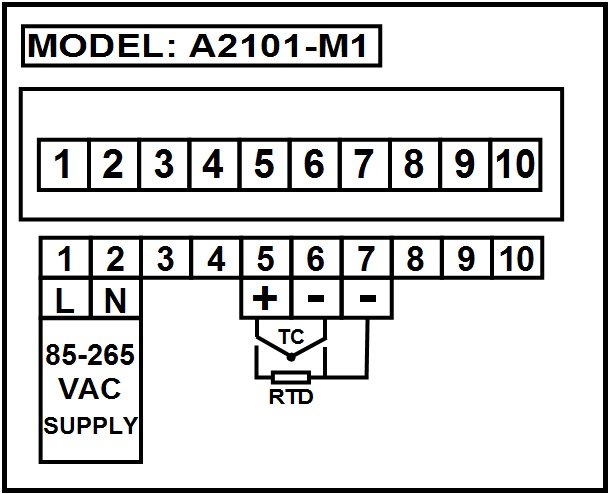

A2101-M1

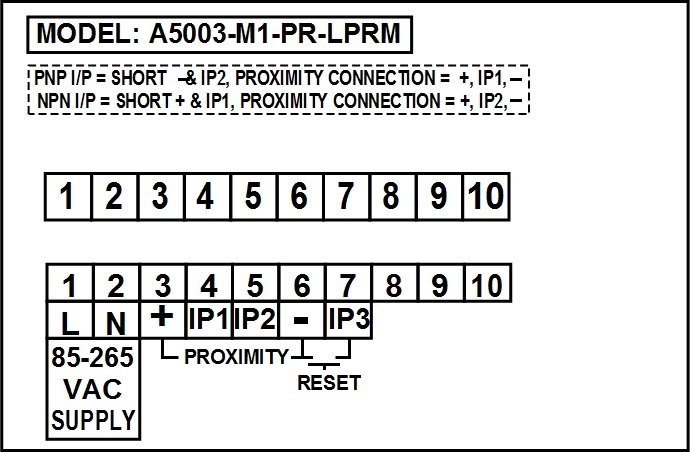

A5003-M1-PR-LPRM

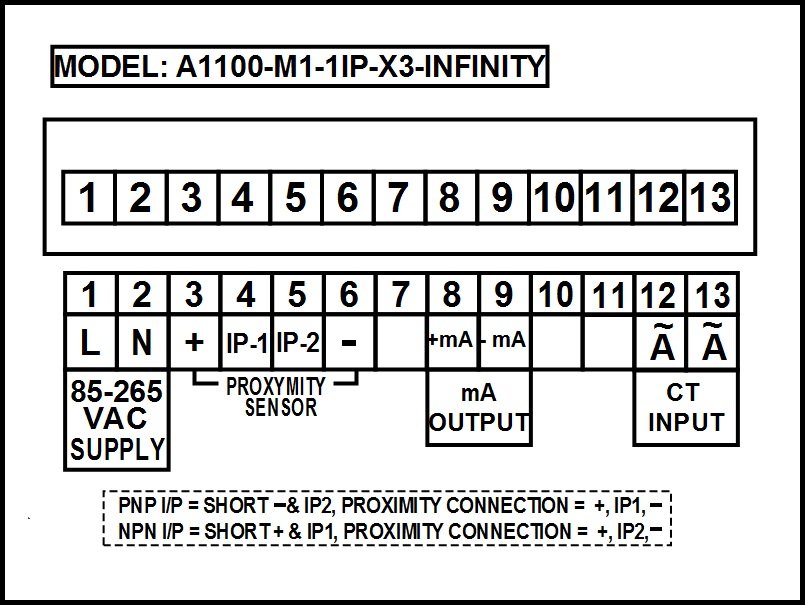

A1100-M1

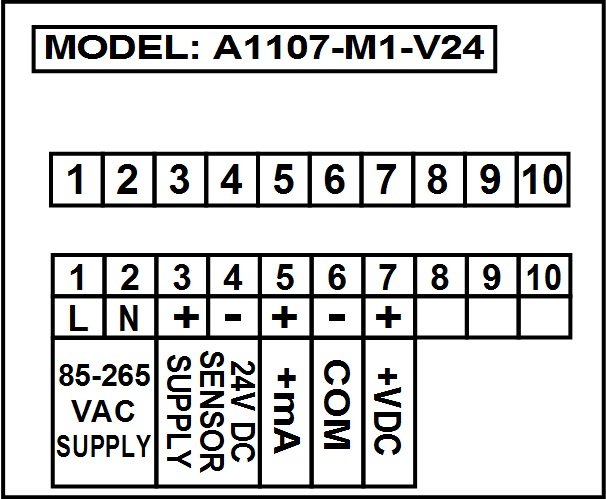

A1107-M1-User Manual
